RFD VideoLink

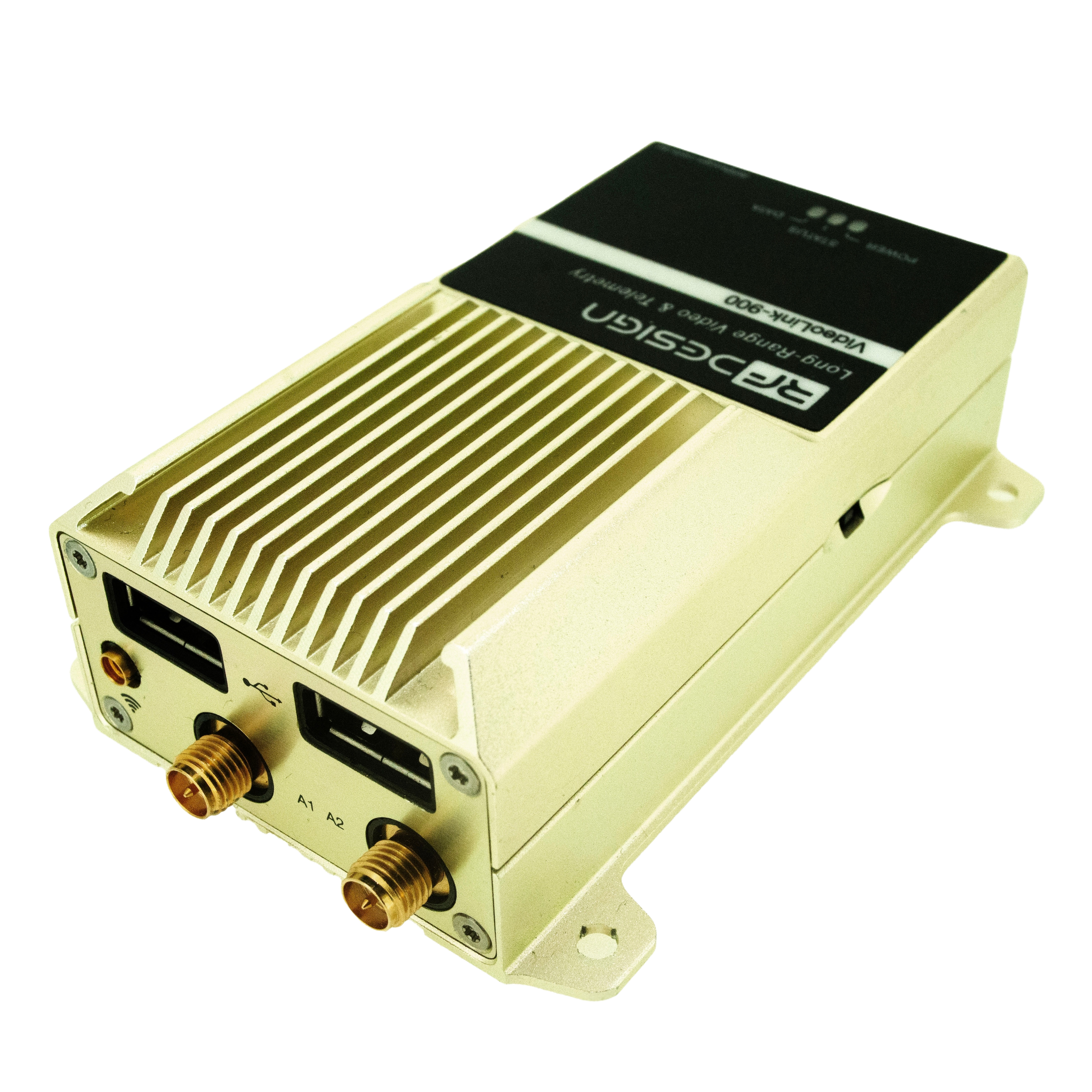

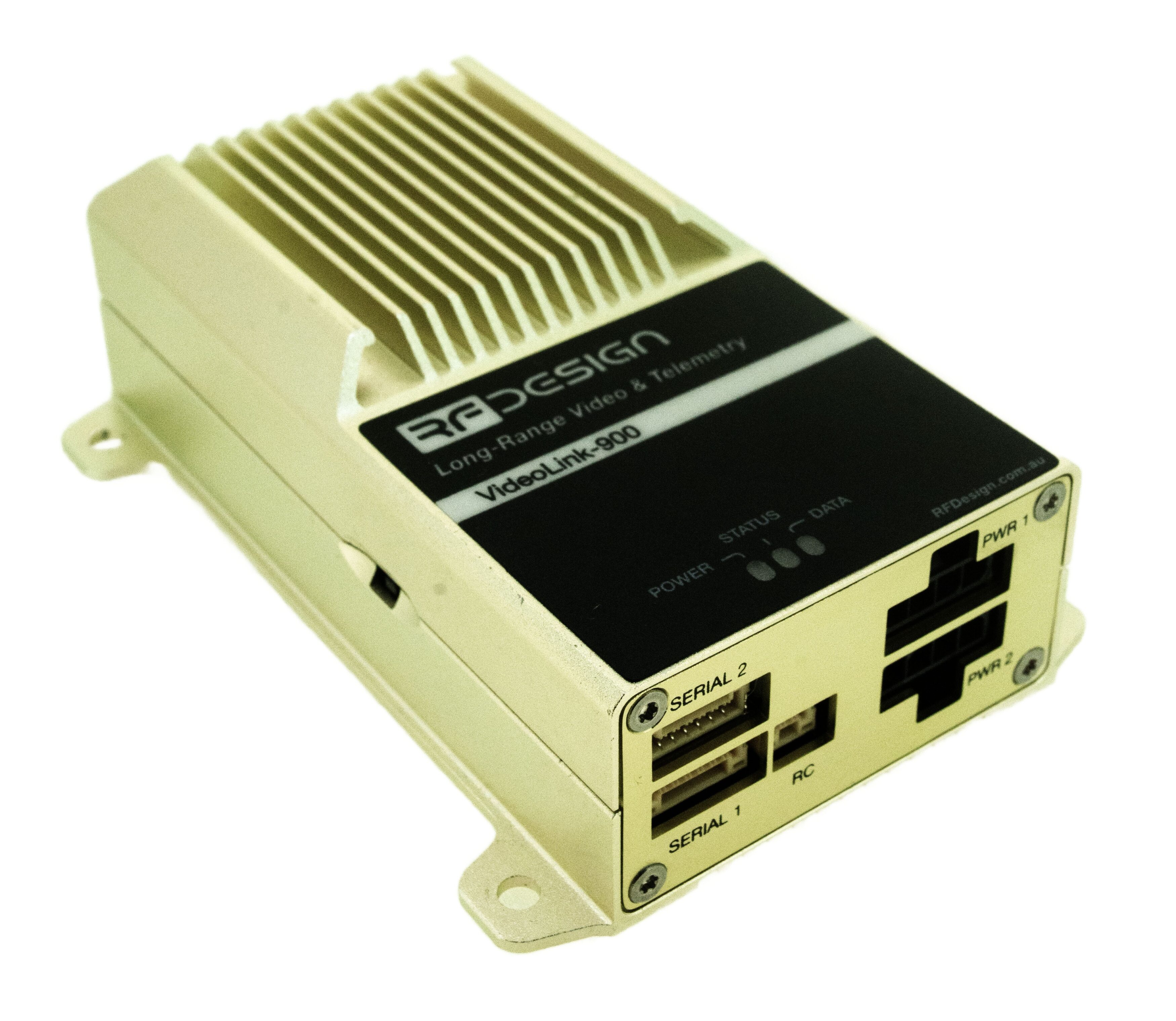

The RFD VideoLink is an outstanding addition for users aiming to enhance their RFD900X modem-based system. It provides robust video transmission, extending the capabilities of your setup. Housed in a rugged Alodine aluminium case, it is designed for durability in challenging environments. The device includes Wi-Fi for easy configuration and an SD card slot for loading firmware. Ideal for UAVs, industrial monitoring, and remote inspections, the RFD VideoLink enhances your system’s range, reliability, and security.
The VideoLink is part of our best-selling x series product line and it inherits the performance of the RFD900X ISM band radio modem. Designed for long range data communication and video transmission applications, the VideoLink – designed, tested and inspected in Australia – is NDAA compliant.
The product may be used in Australia, New Zealand, United States of America and Canada after selecting the region during setup.
Key Features:
- Embedded telemetry module compatible with RFD x series modems
- Video stream and telemetry over MAVLink
- Compatible with most USB UVC cameras
- H.264 video compression
- Configurable video quality, resolution and refresh rate
- Up to 720P resolution and 25 FPS
- Wi-Fi connectivity for configuration
- Easy configuration via Web browser
- Maximum Air data rate: 430kbit/s
- Optional RC PPM or SBUS Passthrough
- Hardware accelerated AES encryption with up to 256-bit key
- Two 900MHz antenna ports with automatic diversity by default
- Redundant power supply input
- Wide voltage input from 6 to 55V
- Weight approximately 165 ± 10 g (not including cables nor antennas)
- Average Video Latency of 500 milliseconds
- Long-range data link capable of transmitting more than 40km depending on parameter settings and antennas
- User updateable firmware and parameters
Note: The VideoLink is not compatible with older “a” or “+” series modems.
- FCC Part 15.247 (Frequency hopping and digitally modulated intentional radiators)
- Air Data transfer rates available: 64, 125, 200, 224, and 430 kbit/sec (User settable depending on firmware and region variant, 200kbit default)*
- UART data transfer rates: 1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200, 230400, 460800 baud (User settable, 57600 default)*
- Output RF Power: 1W (+30dBm)
- Receive Sensitivity: >-102dBm at 12kbps*
- Size: 65 mm (wide) x 95 mm (long) x 30 mm (deep)
- Weight: 165g
- Typical Input Power: 13W @ 12V input
- Maximum Input Power: 36W @ 12V input
- Power supply input: +6 to +55 V nominal
- Maximum USB current output: 500 mA
- Temp. Range: -20 to +65 deg C
- 900MHz ISM: 2 x RP-SMA antenna connectors
- Wi-Fi: 1x MMCX antenna connector
- 2x USB2.0 Type-A connectors
- 2x Serial: Logic level TTL (+3.3V)
- 2x Power Input: +6 to 55V
- 1x RC output (configurable to PPM or SBUS)
